J6412主板+顯示屏方案X86 window/Linux系統可配7寸-24寸TFT帶觸摸
MT-J6412主板搭載英特爾賽揚J6412四核處理器，采用四線程處理技術，主頻為2.0GHz。該主板采用高速無風扇設計，J6412屬于高性能X86架構產品，基于10納米先進制程，并支持多種操作系統

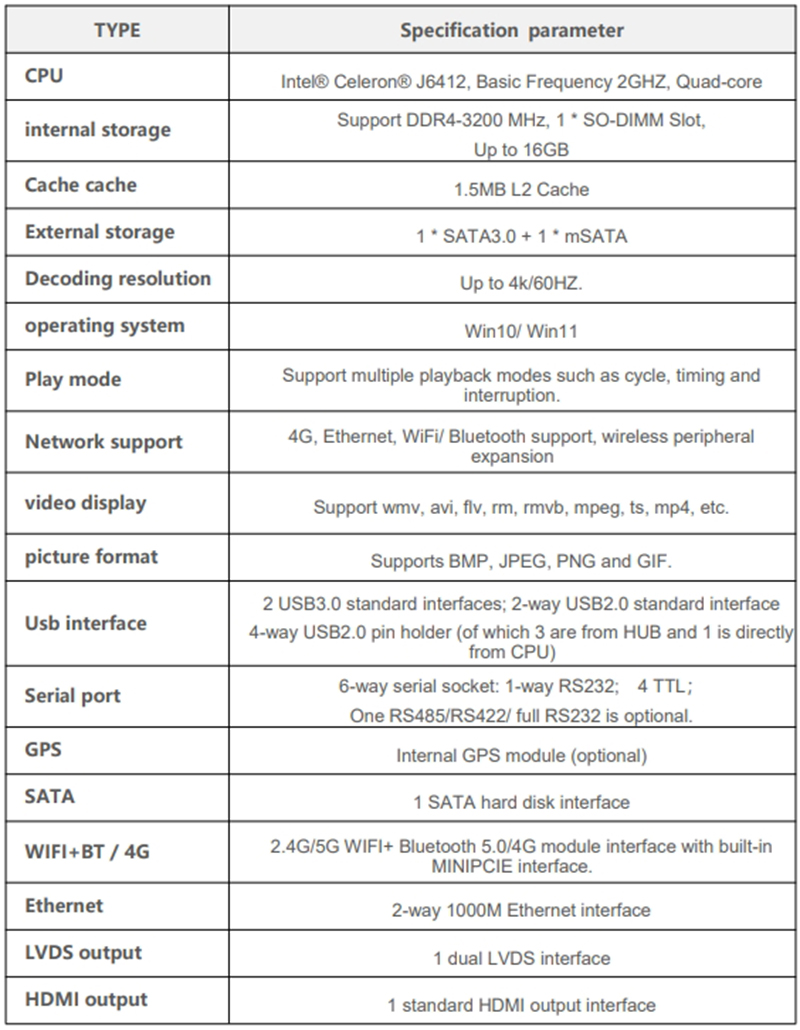

| 生產廠家 | 潤中 |
| 產品型號 | MTJ6412 |
| CPU | Intel® Celeron® J6412, Basic Frequency 2GHZ, Quad |
| internal storage | Support DDR4-3200 MHz, 1 * SO-DIMM Slot, Up to 16GB |
| External storage | 1 * SATA3.0 + 1 * mSA |
| operating system | Win10/ Win11 |
| Network support | 4G, Ethernet, WiFi/ Bluetooth support, wireless peripheral expansion |
| Usb interface | 2 USB3.0 standard interfaces; 2-way USB2.0 standard interface 4-way USB2.0 pin holder (of which 3 are from HUB and 1 is directly from CPU) |
| Serial port | 6-way serial socket: 1-way RS232; 4 TTL； One RS485/RS422/ full RS232 is optiona |
| WIFI+BT / 4G | 2.4G/5G WIFI+ Bluetooth 5.0/4G module interface with built-in MINIPCIE interface |
| Ethernet | 2-way 1000M Ethernet inter |
-
